WSA Series

Battery Technology

Li-Ion
Carrying Capacity

1.6 Ton
Lifting Height

5.5 Metres

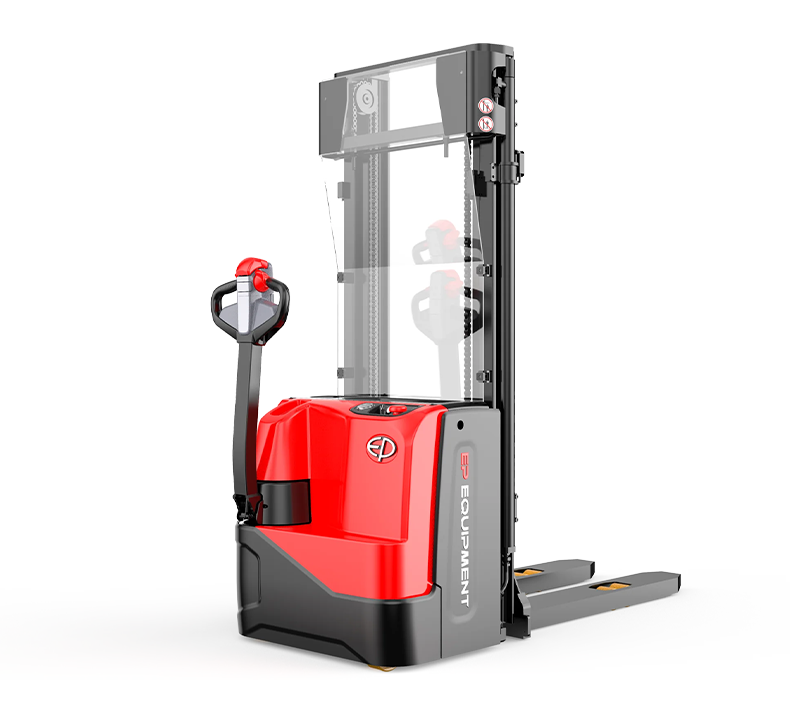

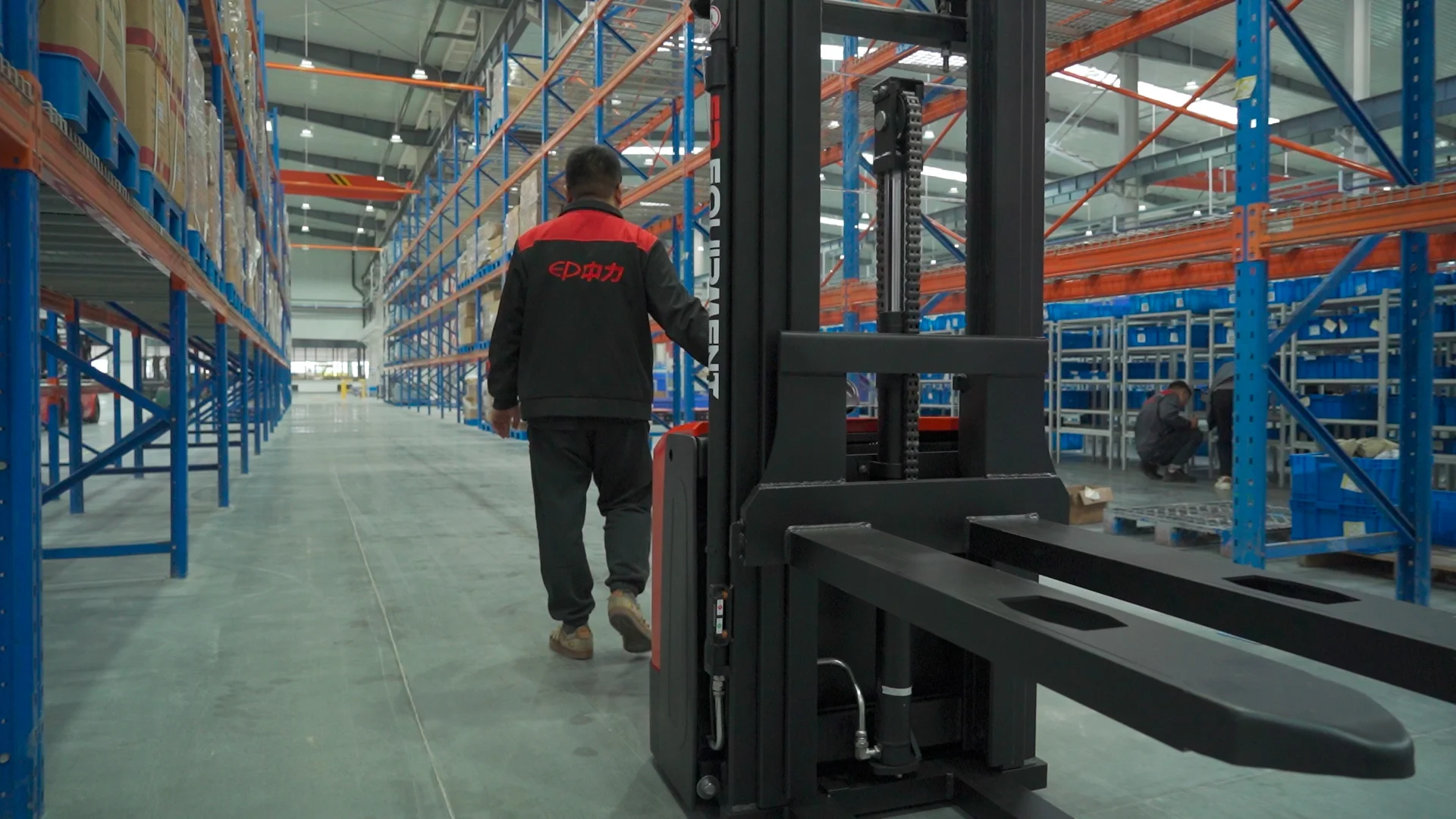

LI-ION ELECTRIC PALLET STACKER 1.2/1.6T

The WSA series is a professional lithium powered pedestrian stacker with load capacity of 1.2/1.6 ton, and a reaching height of up to 5.5m.

With its short l2 (WSA121 l2=714mm, WSA161 l2=774mm), the WSA series is ideal for transportation tasks in confined spaces. The two side cylinders of the WSA161 offers great visibility when stacking and retrieving pallets.

Categories: , Product ID: 11288

Application

  • High Storage Facilities: Ideal for warehouses and manufacturing settings where goods are stored and retrieved at heights up to 5.5 meters.
  • Intensive Use: The faster lifting and lowering speeds, combined with a proportional lifting system, enable shorter material handling cycles and precise, gentle handling of valuable and fragile items, optimizing operations in highly intensive environments.

Key Highlights

  • High-Speed Operations: The WSA series stacker delivers double the lifting and lowering speeds compared to the ES-WA series.

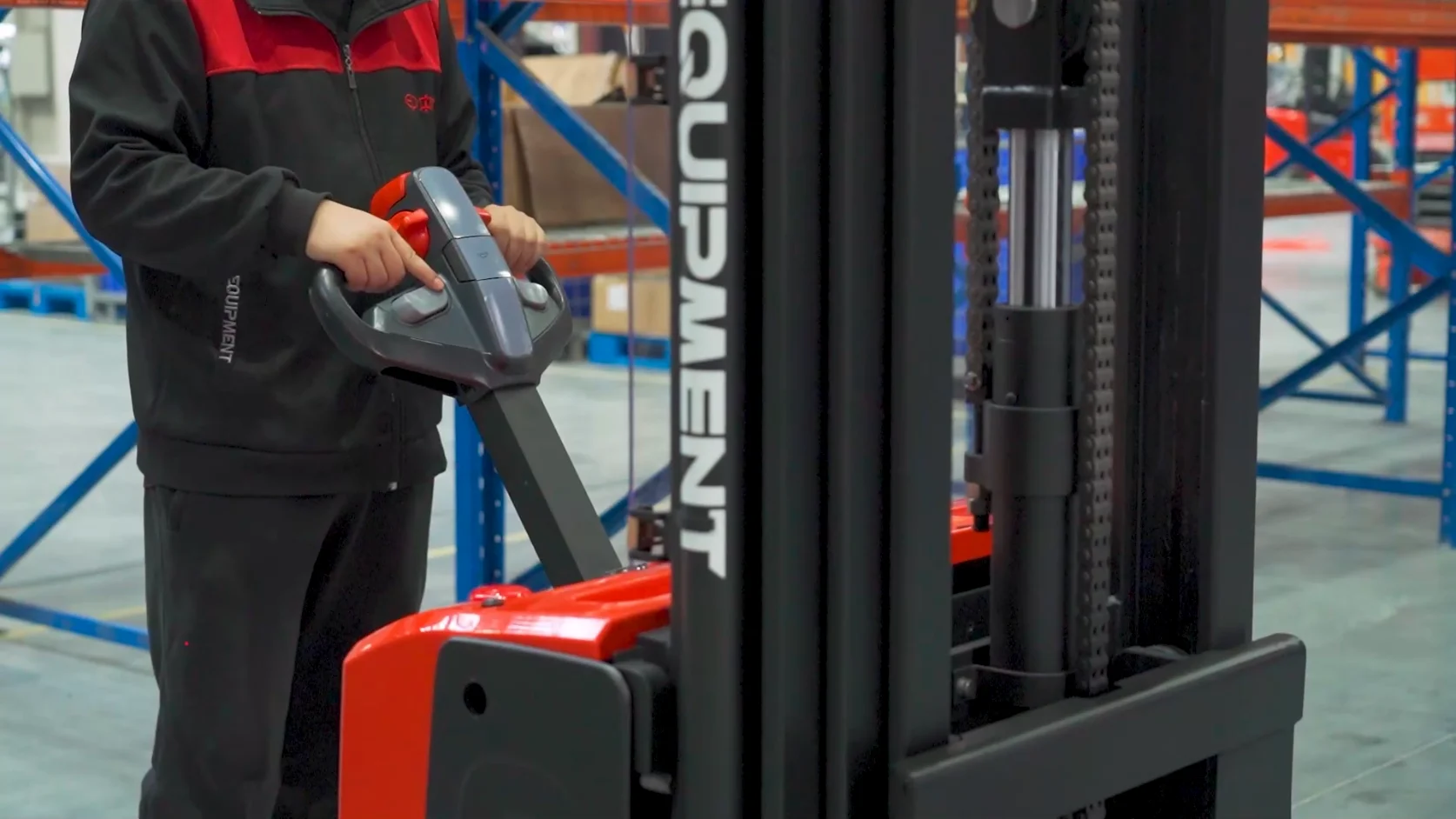

  • Precise Handling: Features a proportional lifting system, allowing for gentle and accurate stacking and retrieval.
  • Tight Spaces: The compact design and enhanced visibility make it suitable for confined spaces and narrow aisles.
  • Maintenance-Free with Opportunity Charging: As a electric powered pallet stacker, WSA series offers high availability and operational readiness, suitable for demanding work schedules and environments.

Features

Compared to the ES-WA series, the brand new WSA series doubles up the lifting and lowering speeds and adds the proportional lifting system as standard. These guarantees higher productivity with more precision.

The WSA series demonstrates a compact size with shorter l2 than the ES-WA series and naturally brings a smaller turning radius. This makes it particularly suitable for moving loads in confined spaces.

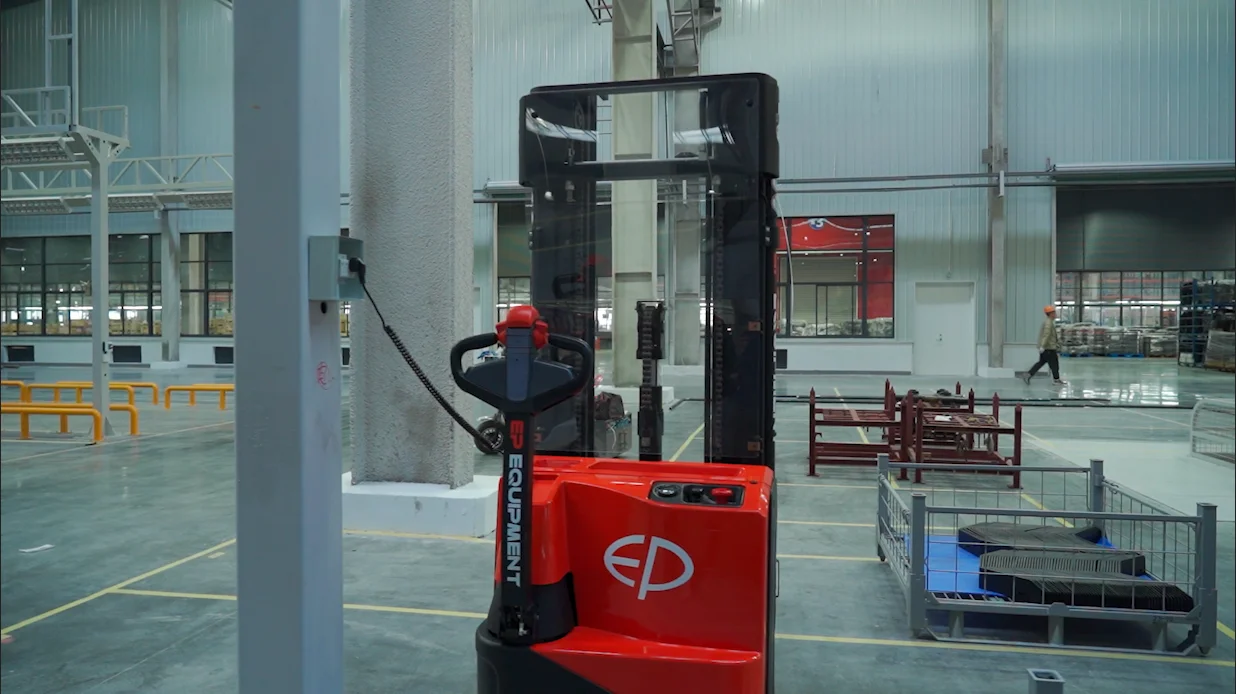

The WSA series is fully designed to take full advantages of lithium technology, with a 24V/100Ah Li-ion battery and a 24V/30A integrated charger, which allows for flexible and rapid charging and zero maintenance. Larger Li-ion battery and lead-acid battery options are available for long operating period.
The WSA series is equipped with upgraded components such as the newly-designed hydraulic system and clear-view mast with greater reliability and stability.
